Products // PBR 100L

PBR 100L

Research Algae Photobioreactor
  • Kavalier and Schott Borosilicate Glass Tank
  • Adjustable LED Spectrum
  • Simple biosecure inoculation
  • Batch, fed-batch, or continuous operation
  • Autoclavable tubing, filters and disconnects
  • 0.1µm air, vent and media filters
  • UV Sterilizer with 0.2µm absolute pre-filter
  • Automated stirring & addition of nutrients
  • Fits through standard door
  • 2 hour initial set-up
DOWNLOAD BROCHURE

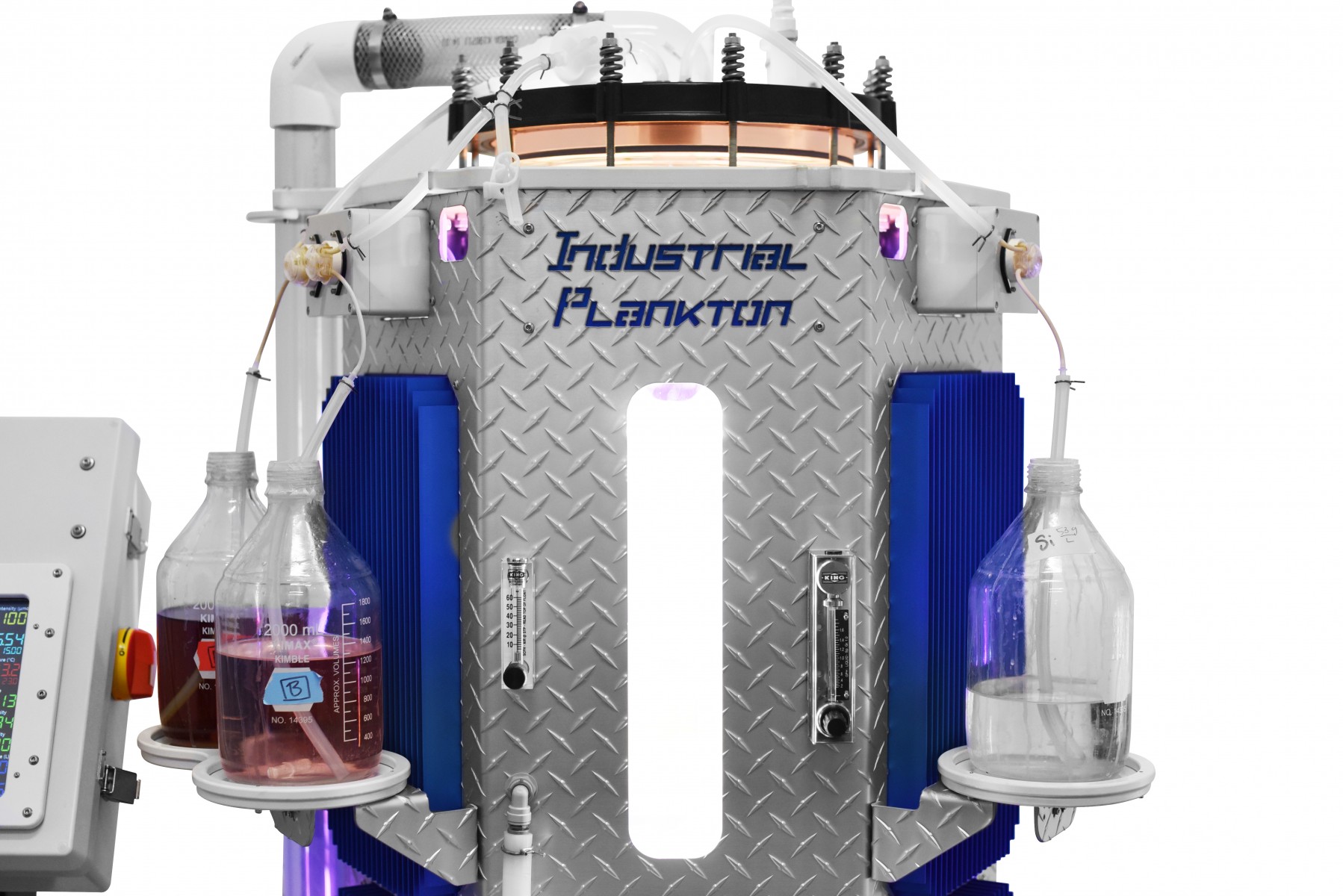

100L Algae Research Photobioreactor
Algae PBR 100L with Header tank
Algae PBR 100L
100 liter automated Photobioreactor for algae culture
microalgae PBR 100L cleaning tank
1 / 5
PBR 100L Features

Biosecure Algae Cultures
LED Adjustable LED Spectrum Designed for Algae
Real-time Graphing and Data Logging
pH control Closed-Loop pH Control
clean Self Cleaning Biosecure Tank
Automated Scale-up and Harvest
Remote Access & WiFi
Touchscreen Controls Intuitive Touchscreen Controls
Temperature control Integrated Temperature Control
How it Works
Inoculation
Biosecure disconnects make inoculation from starter algae culture (2L) simple & clean.
Scale Up
The PBR automatically adds water & nutrients as it scales up the culture over 7-10 days.
Harvest
The PBR automatically harvests in continuous or semi-continuous mode for months at a time. At any point the entire batch can be harvested.
Clean
Between batches run the automated chemical CIP cycle to clean & sterilize the PBR. After a few hours the reactor is ready to be re-inoculated.
Product Specifications

Continuous Production

  • 10 – 50L harvested / day
  • 10 – 35g / day algal dry weight (suspended in water)
  • 0.4 – 1.3g / L algal ash free dry weight density

Production may vary based on quality of strain & inoculum

Species That Thrive

  • Isochrysis sp.
  • Nannochloropsis sp.
  • Tetraselmis sp.
  • Thalassiosira pseudonana
  • Thalassiosira weissflogii
  • Pavlova sp.
  • Karenia brevis
  • Skeletonema sp.
  • Chaetoceros Muelleri
  • Chaetoceros gracilis
  • Chaetoceros calcitrans
  • Haematococcus pluvialis
  • Spirulina sp.
  • Chlamydomonas sp.
  • Chlorella sp

Technical Information

  • 6-24 week continuous production
  • 2L inoculant for 7-10 day scale up
  • 1.5 hours / week of labor

Specifications subject to change without notice
